SPECIFICATIONS

Battery Specification: 72v 120AH

Battery-life: 1200 cycles

Brake System: Front disc+Rear dsic

Brake system: F/R hydraulic disc and handle park brake

Charge Time(h): 7-9h

Charge period: 4-7hours

Colors: All

Curb Weight: 100 ~ 200 kg

Differential Lock: Unequipped

Driving Mileage: 50-70km

Driving Type: 2WD

Grade Ability: ≥25°

Load capacity: <180kg

Maximum Speed: ≥100Km/h

Maximum Torque(Nm): 20-40Nm

Minimum Grand Clearance: 100-150mm

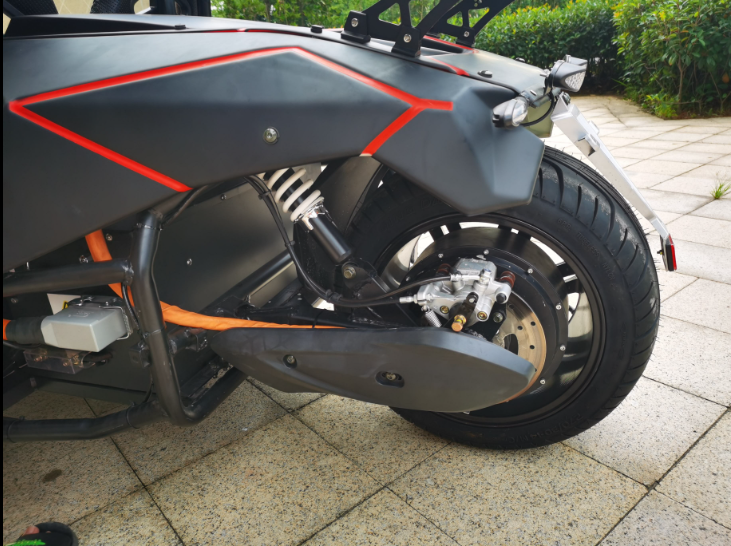

Motor power: 72V 10KW Wheel hub DC motor

Power: > 1000W

Range distance: 60KM

Tire Size: 185/30-R14 / 270/30-R14

Transmission System: Shaft Drive

Voltage: > 60V

Wheelbase: 1400-1800mm,1900mm

charging: 84.2V 20A on board (220V input) 16A(110V input)

Product Description

Motor	72V 10KW Wheel hub DC motor
Battery Spec	72v 120AH ,for BMS 5 Second max amp draw is 500A , continuous amp draw is 300A the BMS settings is 210A
Controller	48V-96V 460A ,Bus current max 460A,phase current max 1200A
Charge period	4-7hours
Battery-life	1200 cycles
Min.ground clearance	1800mm
Max speed	120km/h (72v 120AH /150AH )75km/h(72v 80AH )
Break type(F/R)	F/R hydraulic disc and handle park brake
Load capacity	180kg
Distance range 72v	80Ah：70km-80km ，120ah：110km-120km ，72v 150ah)：140km-150km
Front wheels	185/30-R14
Rear wheels	295/30-R14
Suspension	F/R Double A-arm independent suspension
Driving	Motor direct drive at rear axle
Size	product dimensions: 2850x1650x770mm carton dimensions: 2850x1150x730mm
Wheelbase	1900mm
height of seats	19mm（seat can be removed )

Packaging & Shipping

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Net weight: 162kgs
Gross weight: 186kgs
Carton size: 2850x1150x730mm
Product size: 2850x1650x770mm

After Sales Service

1. We provide one year warranty, but battery, motor, controller, tire only 6 months. The warranty based on broken not made by

human being.
2. If there is any broken not made by human being, Please send us video and picture, we will check which part is broken, then we
will send you free spare parts.
3. If the broken made by human being, we can sell you spare parts to repair it.

Contact

Chris Cheng
Strollwheel Technology Co.,Ltd
QQ: 2477189215
Skype: live:strollwheel1
Tel: 0086 579 87588887
Website: www.strollwheel.cn
Alibaba:strollwheel.en.alibaba.com
Wechat/WhatsApp: 008613250995597

Recommend Products

Company Introduction

Strollwheel Technology Co.,Ltd was established on 2016, we have more than 5 years experience in Manufacturing Electric scooter, Citycoco, ATV, Pocket Bike and Kids scooter.

1. We are a large factory covering an area of 15000 square meters, with 20-30 assembly workers.
2. We can provide OEM and ODM
services. We have mature supply chain integration capabilities and can provide complete services from raw materials to vehicle assembly to product packaging.

3. We have documents conforming to EU certification, such as EEC and COC documents. The vehicles produced can be licensed on European roads.

4. We have a warehouse in Europe and sufficient inventory. We can accept one order
door-to-door service. Customers in Europe can receive products within 3-7 days.

5. Our team has 8 years of industry service experience, with 4 professional salespeople, and the timely response rate can reach
95% ~ 100%.

6. Our main markets are Europe, North America and South America. We export to these countries for a long time and have
rich export experience.

We do our best for good feedback and customer service for all customers, our target is all customers 5 stars review!!!

FAQ

1. About Sample: How could I get a sample?
We have to receive your payment for samples and their express delivery cost, then send samples to you. The prices of the samples are 15% extra on the price list. Express delivery charge depends on the quantity of the samples.

2. About Price: could I get your price list?
Yes, please tell us the products (with their model number), quantity you are interested in, then we will offer the price bye mail.

3. About OEM: could we place order by OEM style to produce our own brand products in your factory?
Of course you can. Welcome to do OEM. What you need to do is email us the brand name or logo.

4. About Lead Time: How soon we can get the shipment?
We will arrange delivery from China warehouse to your address by train after we received your payment, shipping time is 40~45 days.

5. About MOQ (Minimum Order Quantity): what is the minimum order quantity?
Different model with different minimum order, so please contact with us before you send order.
